Description

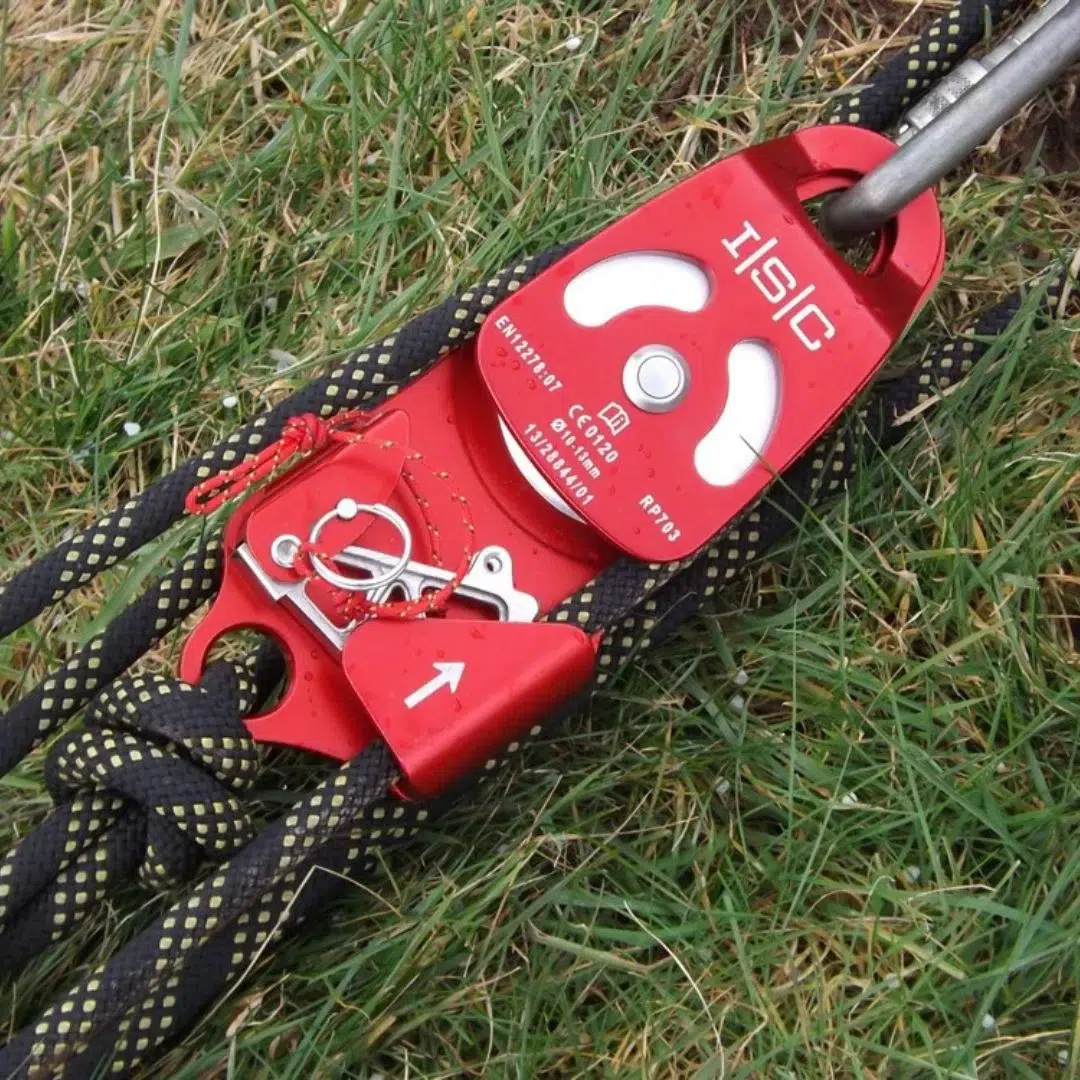

The ISC RP703 Double Progress Capture Pulley is designed for technical rescue, hauling and rope access systems where efficient mechanical advantage and controlled progress capture are required.

The RP703 combines two free-running aluminum pulley wheels with an integrated progress-capture cam positioned below the pulley body. The pulley wheels themselves are non-locking, allowing smooth rope travel, while the capture cam helps prevent loss of progress during hauling operations.

Designed for use with 10–13mm rope, the RP703 features a durable anodized aluminum body and aluminum wheels for strength and dependable performance in demanding rescue environments.

With a Safe Working Load of 1,763 lbs (800 kg) and a Minimum Breaking Strength of 40 kN (8,992 lbs), this pulley is built for professional rope rescue and technical access applications.

Product Features

• Features & Specifications
• Double pulley with integrated progress-capture cam
• Non-locking, free-running pulley wheels
• Designed for hauling and mechanical advantage systems
• Rope diameter range: 10–13mm
• Safe Working Load (WLL): 800 kg / 1,763 lbs
• Minimum Breaking Strength (MBS): 40 kN / 8,992 lbs
• Weight: 2 lbs / 908 g / 32 oz /
• Body material: Aluminum
• Wheel material: Aluminum
• Finish: Anodized
• Individually serial numbered
• Approved standards: EN 12278, EN 567 and NFPA 1983

The ISC RP703 Double Progress Capture Pulley is well suited for fire rescue teams, technical rescue professionals and rope access applications requiring a compact system for hauling, progress capture and load management.
